Production of assembly lines for industrial

The following are some examples of machines built:

Automated solutions for locks

Pre-assembly line with double cylinders for locks

Automazione-e-robotica--R4--Cisano-Bergamasco-0013
  • Stations: 9
  • Assembled components: 11
  • Assemblable models: 25-30-35-40-40 front and rear
  • Operators: 1
  • Hourly production: 750 pcs / h
  • Format change: automatic

Line for assembly and control of locks

Automazione-e-robotica--R4--Cisano-Bergamasco-0022
  • Stations: 7
    Power supply: automatic via feeders and elevators
  • Linear with free pallets
    Station 1 component loading manual
    Station 2 component loading manual
    Hydraulic caulking station
    Cam station electronic control panel handles
    Electronic control cam station tab
    Brushless motorized control station
    Discharge station
    Finished product accumulation line

Production 850 pieces / h
Number of operators 1

Automazione-e-robotica--R4--Cisano-Bergamasco-0012

Automated solutions with rotating tables

Automazione-e-robotica--R4--Cisano-Bergamasco-00151

Rotating table for assembling hinges for doors and windows

  • Stations: 5
  • Assembled components: 2
  • Power supply: automatic via feeders and hoppers
  • Automatic box change
  • Hourly production: 2000 pcs / h
Automazione-e-robotica--R4--Cisano-Bergamasco-0016

Furniture hinges

  • Stations: 6
    Assembled components: 4
    Power supply: automatic via feeders and hoppers
    Automatic box change
    Hourly production: 2200 pcs / h
Automazione-e-robotica--R4--Cisano-Bergamasco-0017

Chain Link Tables

  • Stations: 12
    Assembled components: 8
    Power supply: automatic via feeders and elevators
    Hourly production: 2100 pcs / h
Automazione-e-robotica--R4--Cisano-Bergamasco-0018

Pin and Roller Tables

Stations: 6
Assembled components: 3
Power supply: automatic via feeders and elevators
Hourly production: 2600 pcs / h

Automazione-e-robotica--R4--Cisano-Bergamasco-0027

Linear assembly units

Variable-pitch chain mounting unit

Automazione-e-robotica--R4--Cisano-Bergamasco-0019
  • Linear machine for assembling chains, with variable pitch fins

Configuration

  • Step unit
    Unified Mesh positioning
    Knit closure unit
    Production 1200 pieces / h
    Number of operators 1

Bearing assembly line

  • Power supply: automatic via feeders and elevators
Automazione-e-robotica--R4--Cisano-Bergamasco-0020

Configuration:

  • Linear with free pallets
    Shaft loading station
    Ring loading station
    Lower ring loading station
    Sphere station
    Upper ring station
    Orbital riveting station
    Control station
    Lubrication station
    Discharge station

Production 1200 pieces / h
Number of operators 0/1

Robotic line assembly of links / chains

  • Stations: 9
    Power supply: automatic via feeders and elevators
Automazione-e-robotica--R4--Cisano-Bergamasco-0021

Configuration:

  • Linear with free pallets
    Lower mesh loading station
    First conveyor loading station
    Loading station according to conveyor
    Top link loading station
    Orbital riveting station
    Split pin assembly station
    Control station
    Lubrication station
    Discharge station
    Production 900 pieces / h
    Number of operators 0/1
Automazione-e-robotica--R4--Cisano-Bergamasco-0028

Milling unit

Barrel milling unit

Automazione-e-robotica--R4--Cisano-Bergamasco-0023
  • Machinable barrel models : 25-30-35-40-45-50-55-60
    Gutter orientation station
    Milling head
    Hydraulic vice movement station
    Power supply: automatic via feeder and hopper
    Hourly production: 800 pcs / h
Automazione-e-robotica--R4--Cisano-Bergamasco-00241

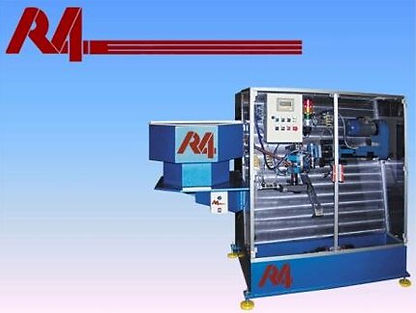

Tip milling unit

  • Models that can be processed: 3
    Milling head
    Hydraulic vice movement station
    Power supply: automatic via feeder and hopper
    Hourly production: 1200 pcs / h

Pin machining units

Automazione-e-robotica--R4--Cisano-Bergamasco-0025

Pin machining units

Stazioni: 8
Modelli lavorabili: 18
Transfer to rotating table


Loading station
Center hole station
Countersink station
Flaring station
Key planes milling station
Threading station
Control station
Discharge station


Power supply: automatic via feeder and hopper
Hourly production: 870 pcs / h

Drilling and block boring units

Stations: 6
Models that can be processed: 8
Transfer to rotating table

Loading station with orientation


  • Boring station
  • Piece rotation station
  • Boring station
  • Control station
  • Discharge station


Power supply: automatic via feeder and hopper
Hourly production: 560 pcs / h

Automazione-e-robotica--R4--Cisano-Bergamasco-0026

Discover the performance of our assembly lines
Contact our technicians today
